List of Cross Talk Channel Configurations Supported
| XTalk type | Number of FEXT | Number of NEXT | Link to Figure |

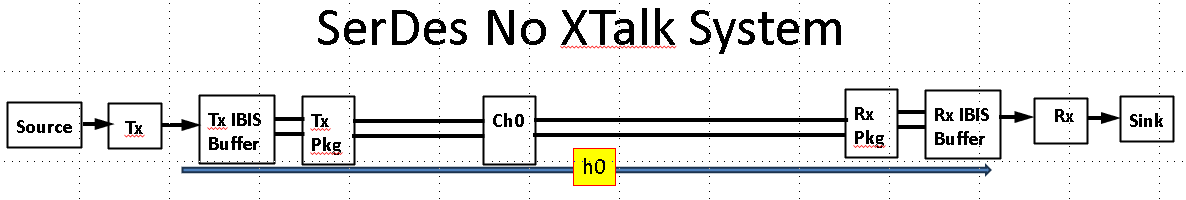

| 0 | 0 | 0 | No XTalk ... |

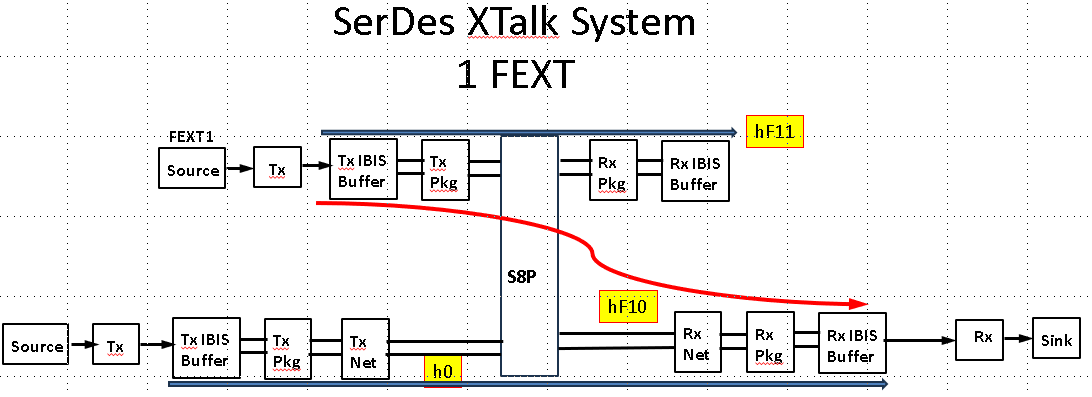

| 1 | 1 | 0 | 1FEXT ... |

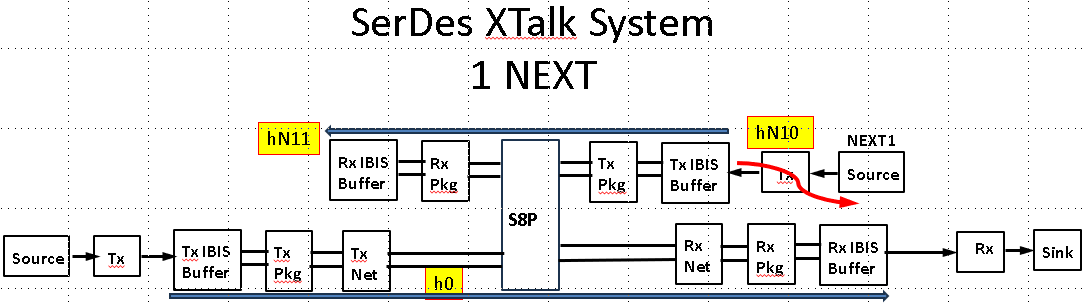

| 2 | 0 | 1 | 1NEXT ... |

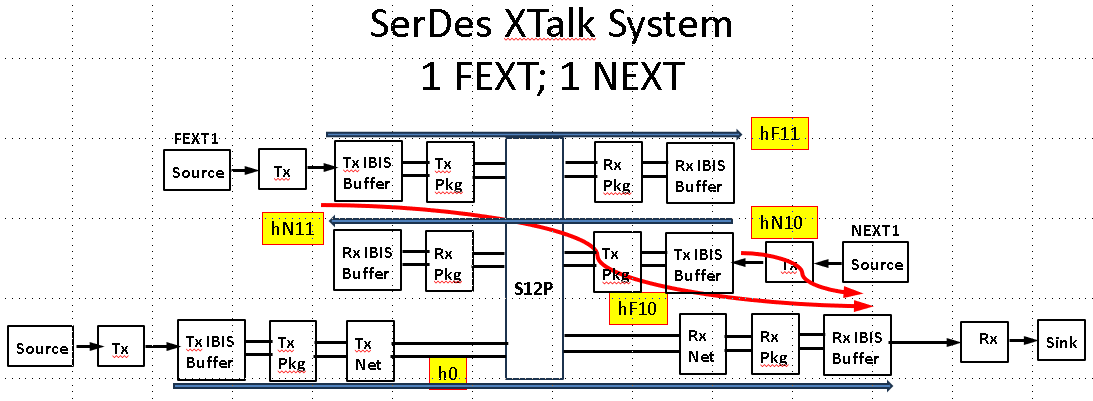

| 3 | 1 | 1 | 1FEXT 1NEXT ... |

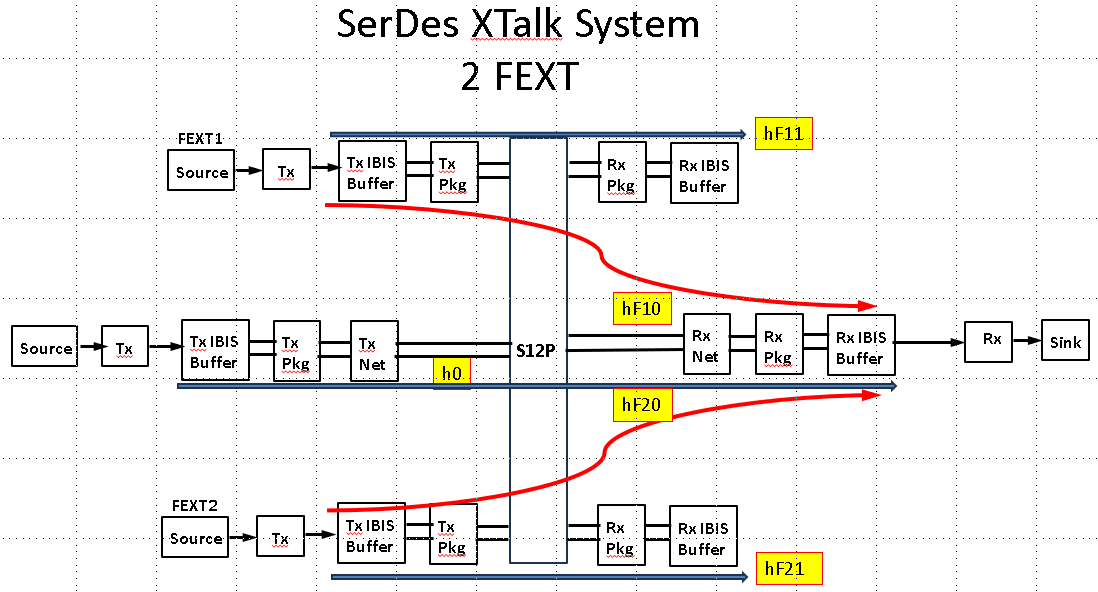

| 4 | 2 | 0 | 2FEXT ... |

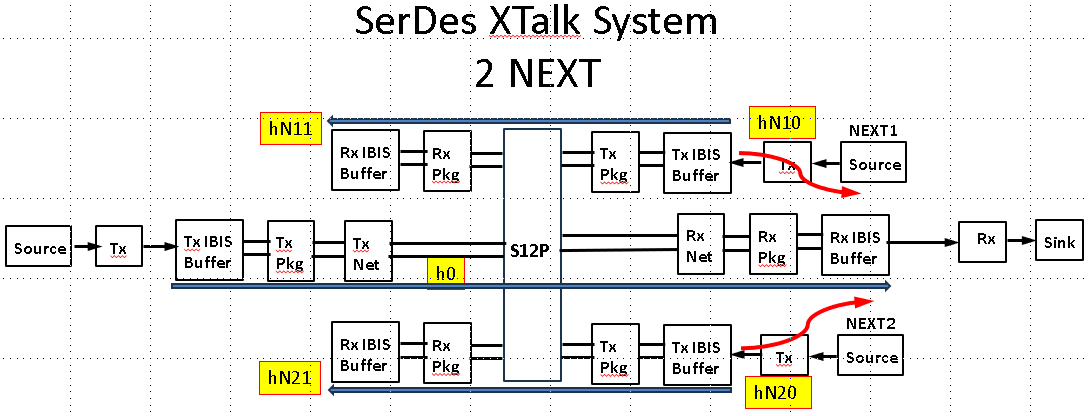

| 5 | 0 | 2 | 2NEXT ... |

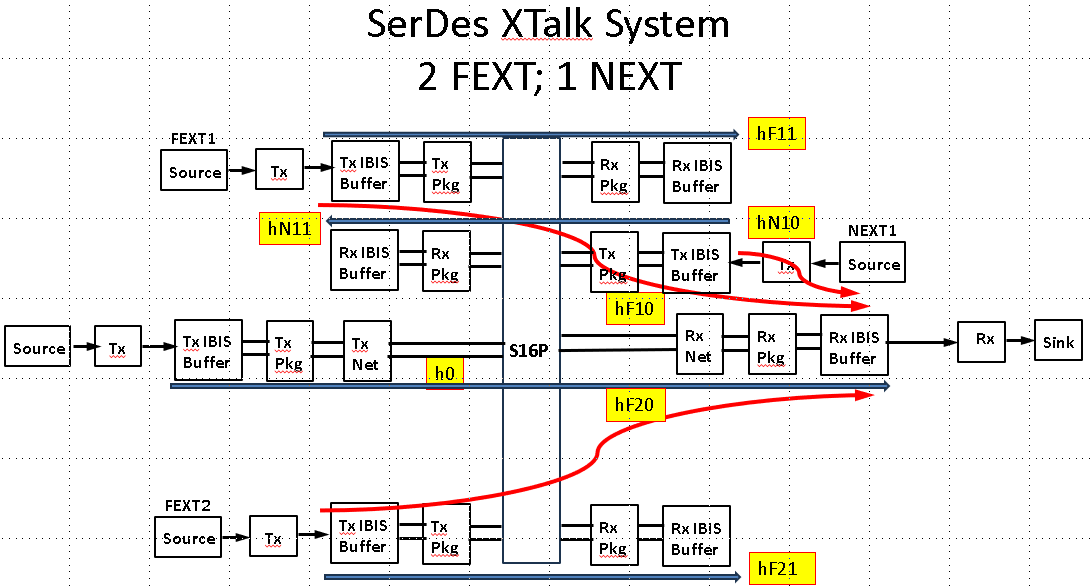

| 6 | 2 | 1 | 2FEXT 1NEXT ... |

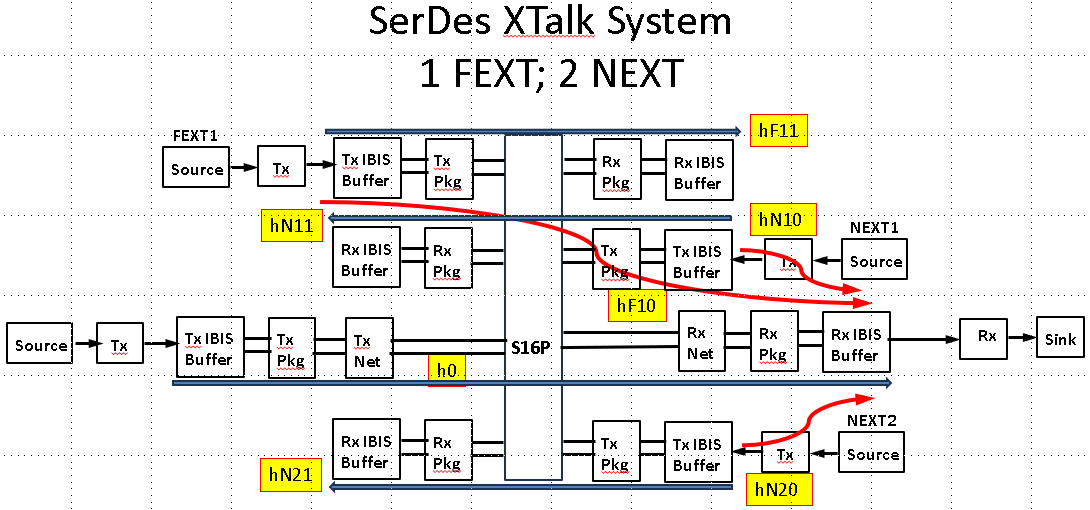

| 7 | 1 | 2 | 1FEXT 2NEXT ... |

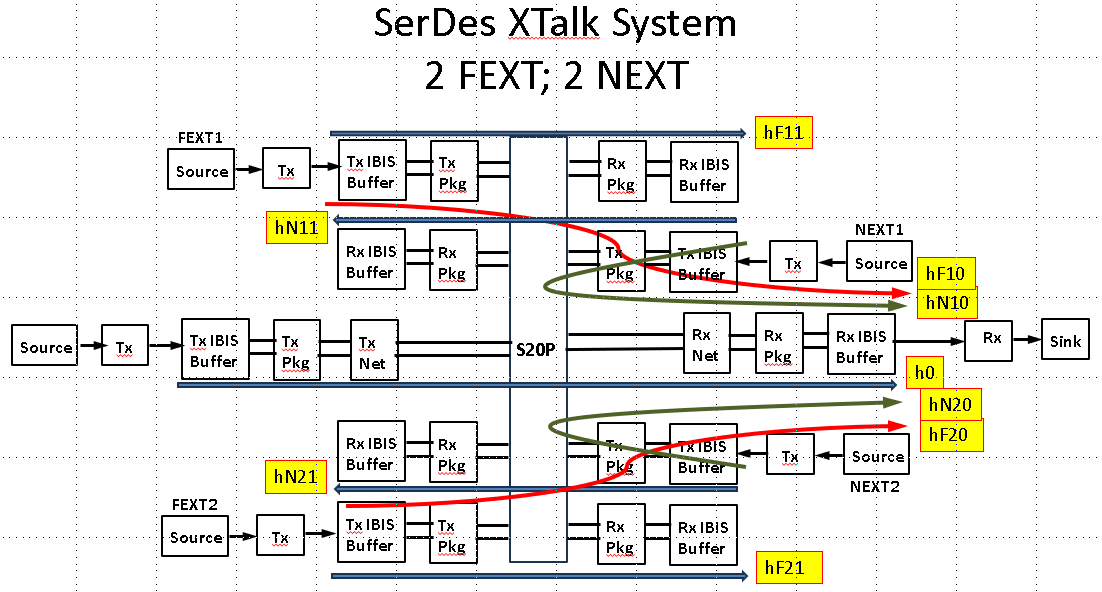

| 8 | 2 | 2 | 2FEXT 2NEXT ... |
| Description and Name Prefix | Name | Status | Comment | Action | Action |
| Analysis name: Serdes_ | Alpha-numeric characters or underbar - case sensitive - start with alpha character | Info... |
2. Define Ch0 Transmitter
| Name | Description | Entry Value(s) | Status | Type | Limits | Comment | Action |
| TransmitterJitterType | Transmitter jitter type | Integer | [0, 1] |
0 = Use Ch0 IBIS-AMI jitter |
|||
| TransmitterType | Transmitter type | Integer | {0,1} |
0 = Use Ch0 IBIS-AMI |
3.0 Define Channels - the channel is linear and time invariant (LTI), but the AMI portion of IBIS-AMI models may be LTI or NLTV.
| Name | Description | Entry Value(s) | Status | Type | Limits | Comment | Action |
| XTalk0Type | Main channel specification type | Integer | [1] |
1 = Enable main channel (Ch0) |
|||
| XTalkF1Type | FEXT 1 channel specification type | Integer | [0, 1] |
0 = None |
|||
| XTalkN1Type | NEXT 1 channel specification type | Integer | [0, 1] |
0 = None |
|||
| XTalkF2Type | FEXT 2 channel specification type | Integer | [0, 1] |
0 = None |
|||
| XTalkN2Type | NEXT 2 channel specification type | Integer | [0, 1] |
0 = None |
4. Define Ch0 Receiver
| Name | Description | Entry Value(s) | Status | Type | Limits | Comment | Action |
| ReceiverFEType | Receiver LTI front end type | Integer | {0,1} |
0 = Use Ch0 IBIS-AMI |
|||
| ReceiverNLTVType | Receiver NLTV type | Integer | {0,3} |
0 = Use Ch0 IBIS-AMI |
|||
| ReceiverJitterType | Receiver jitter type | Integer | [0, 1] |
0 = Use Ch0 IBIS-AMI jitter |
5. Setup Analysis - Bit-by-Bit Analysis is used by default; Statistical Analysis is used if system is LTI and SetupOption ForceBitByBitMode = 0.
| Name | Description | Entry Value(s) | Status | Type | Limits | Comment | Action |
| SymbolRate | Symbol rate (same as bit rate for NRZ) | Real | > 0 | Symbols per second (same as bits per second for NRZ) | |||
| SamplesPerSymbol | Samples per symbol (same as samples per bit for NRZ) | Integer | [4, 128] | ||||
| SetupOptions | Setup analysis options | Integer | [1] |
0 = No |
6. Run Analysis
This tool is available for free to use on Windows with the Download button. Contact me if you would like it after the last availability date. This tool is an Add-On and requires the SerDesDesign.com Channel Simulator Download.| Select to run analysis | Waiting to run | ||
| Download Tool | Available until Oct. 2, 2025 |
7. Display Results
Go to the Eye Analysis Tool for detail eye analysis for this SerDes system (set ChAnalysisName = Serdes_'Analysis name')...| Display | Action | Action |
| Analysis log file | None | |
| 0. Channel spectrum magnitude | None | |
| 1. FEXT/NEXT channel spectrum magnitude | None | |
| 2. FEXT/NEXT channel time domain response | None | |
| 3. Corrected channel impulse response | None | |
| 4. System worst/best case eye contours | None | |
| 5. System amplitude bathtub BER | None | |
| 6. System Rx input waveform | None | |
| 7. System Rx output waveform | None |
