About the SerDes System Single Channel Tool... Typical SerDes System Characteristics and Displays...
Example NRZ SerDes system using IBIS-AMI models... Example PAM4 SerDes system using behavioral models...

1. Define Analysis Name

Description and Name Prefix Name Status Comment Action Action
Analysis name: Serdes_ Alpha-numeric characters or underbar - case sensitive - start with alpha character Info...

2. Define Transmitter

Name Description Entry Value(s) Status Type Limits Comment Action
TransmitterJitterType Transmitter jitter type Integer [0, 1]

0 = None
1 = Apply jitter
TransmitterType Transmitter type Integer [0, 4]

0 = Use Ch0 IBIS-AMI
1 = Use Ch0 IBIS with this FFE
2 = Use Ch0 IBIS with this FFE Black Box
3 = Use Ch0 IBIS with this FFE with Registers
4 = Use Ch0 IBIS with this CTLE

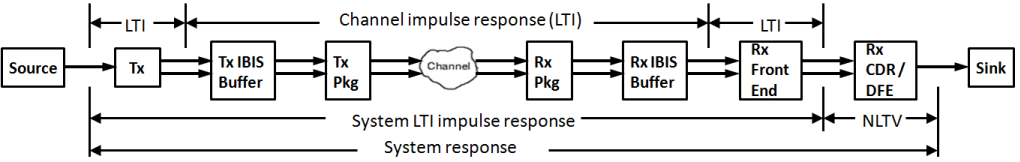

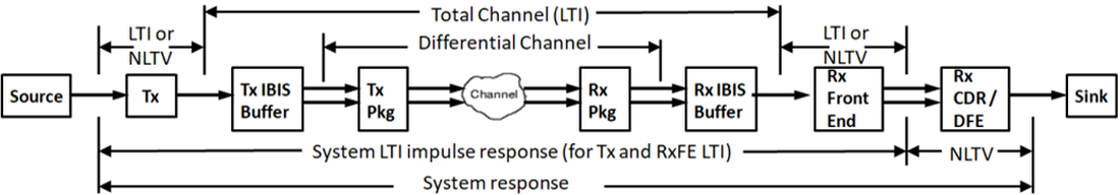

3.0 Define Channel - the channel is linear and time invariant (LTI), but the AMI portion of IBIS-AMI models may be LTI or NLTV.

Name Description Entry Value(s) Status Type Limits Comment Action
ChannelType Channel specification type Integer [ 0, 3]

0 = None
1 = Channel (Ch0) implulse data
2 = Channel (Ch0) S-parameter data
3 = Channel (Ch0) with Tx/Rx IBIS-AMI/pkg
EnableChAntiAliasing Enable channel impulse anti-alising Integer [ 0, 1]

0 = No; 1 = Yes
Used only when ChannelType=1
ChAntiAliasingFc Channel anti-alising filter corner frequency Real >= SymbolRate

Value in Hz; Used only when ChannelType=1 and EnableChAntiAliasing=1

4. Define Receiver

Name Description Entry Value(s) Status Type Limits Comment Action
ReceiverFEType Receiver LTI front end type Integer [0, 6]

0 = Use Ch0 IBIS-AMI
1 = Use Ch0 IBIS with this 1 section CTLE
2 = Use Ch0 IBIS with this 2 section CTLE
3 = Use Ch0 IBIS with this 3 section CTLE
4 = Use Ch0 IBIS with this 4 section CTLE
5 = Use Ch0 IBIS with this Rx FFE
6 = Use Ch0 IBIS with this Rx FFE Black Box
ReceiverNLTVType Receiver NLTV type Integer [0, 4]

0 = Use Ch0 IBIS-AMI
1 = Use Ch0 IBIS with this CDR
2 = Use Ch0 IBIS with this NL + CDR
3 = Use Ch0 IBIS with this CDR + DFE
4 = Use Ch0 IBIS with this NL + CDR + DFE
ReceiverJitterType Receiver jitter type Integer [0, 1]

0 = None
1 = Apply jitter

5. Setup Analysis - Bit-by-Bit Analysis is used by default; Statistical Analysis is used if system is LTI and SetupOption ForceBitByBitMode = 0.

Name Description Entry Value(s) Status Type Limits Comment Action
SymbolRate Symbol rate (same as bit rate for NRZ) Real > 0 Symbols per second (same as bits per second for NRZ)
SamplesPerSymbol Samples per symbol (same as samples per bit for NRZ) Integer [4, 128]
SetupOptions Setup analysis options Integer [0, 1]

0 = No
1 = Yes
GenerateModels Generate IBIS-AMI models
Generate models after Run with satisfactory results		 Integer [0, 1, 2]

0 = No
1 = Yes: Tx only
2 = Yes: Rx only

 Info...
TxIBIS_AMI_ModelName Transmitter IBIS-AMI model name ModelName

Used when GenerateModels=1
RxIBIS_AMI_ModelName Receiver IBIS-AMI model name ModelName

Used when GenerateModels=2

6. Run Analysis

This tool is available for free to use on Windows with the Download button. Contact me if you would like it after the last availability date. This tool is an Add-On and requires the SerDesDesign.com Channel Simulator Download.
Select to run analysis Waiting to run
Download Tool
Download
Available until Oct. 2, 2025

7. Display Results

Go to the Eye Analysis Tool for detail eye analysis for this SerDes system (set ChAnalysisName = Serdes_'Analysis name')...
Display Action Action
Analysis log file None
0. Channel spectrum magnitude None
1. Channel spectrum phase None
2. Channel data impulse response None
3. Corrected channel impulse response None
4. System worst/best case eye contours None
5. System amplitude bathtub BER None
6. System Rx input waveform None
7. System Rx output waveform None

8. Compare Waveform to Reference Waveform

Name Value Status Comment
WaveformTimeOffset Time offset applied to analysis waveform
WaveformVoltageScale Voltage scaling applied to analysis waveform
WaveformVoltageOffset Voltage offset applied to analysis waveform
WaveformNumDataSets Number of waveform sets with column order; t, v1, v2, ..., vN
WaveformIndex Waveform index in the range [1, NumDataSets]
WaveformReferenceFile

Upload a file (waveform file format) or list previously uploaded file.
Select to run analysis Waiting to run
Display test and ref waveforms None
